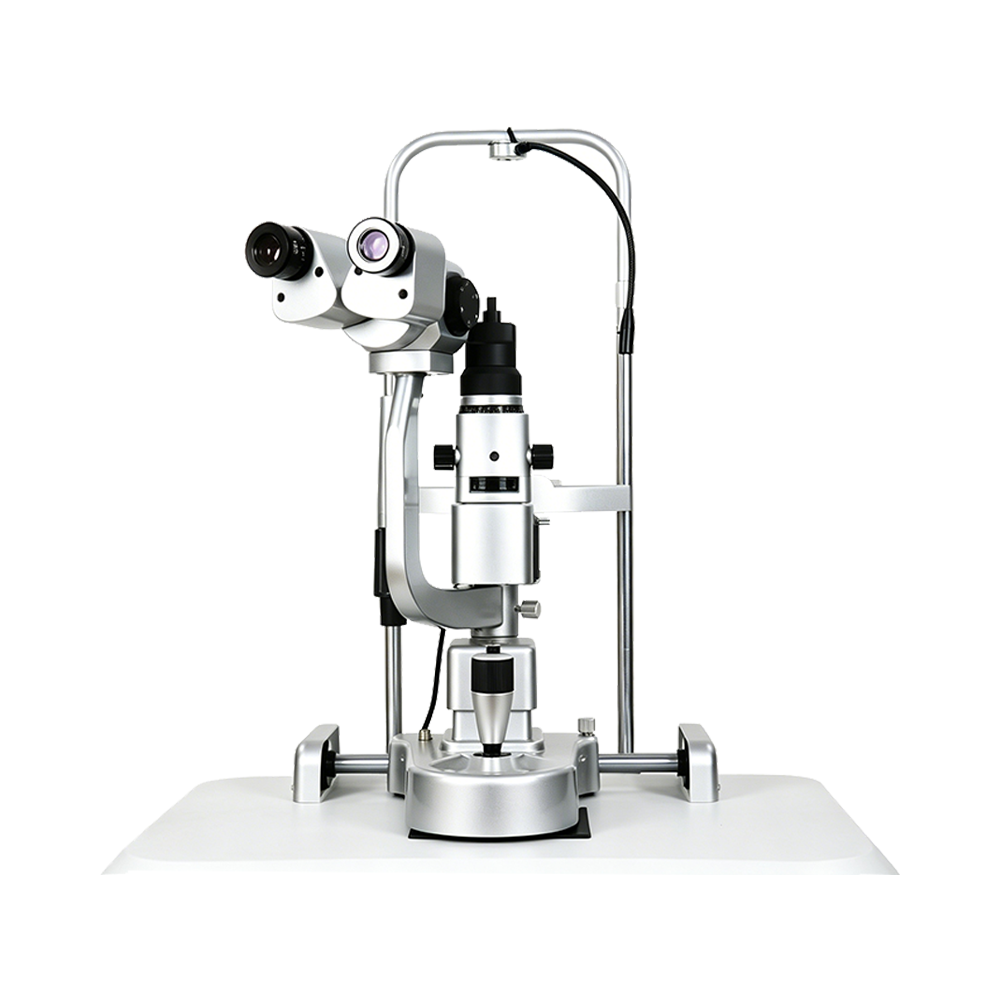

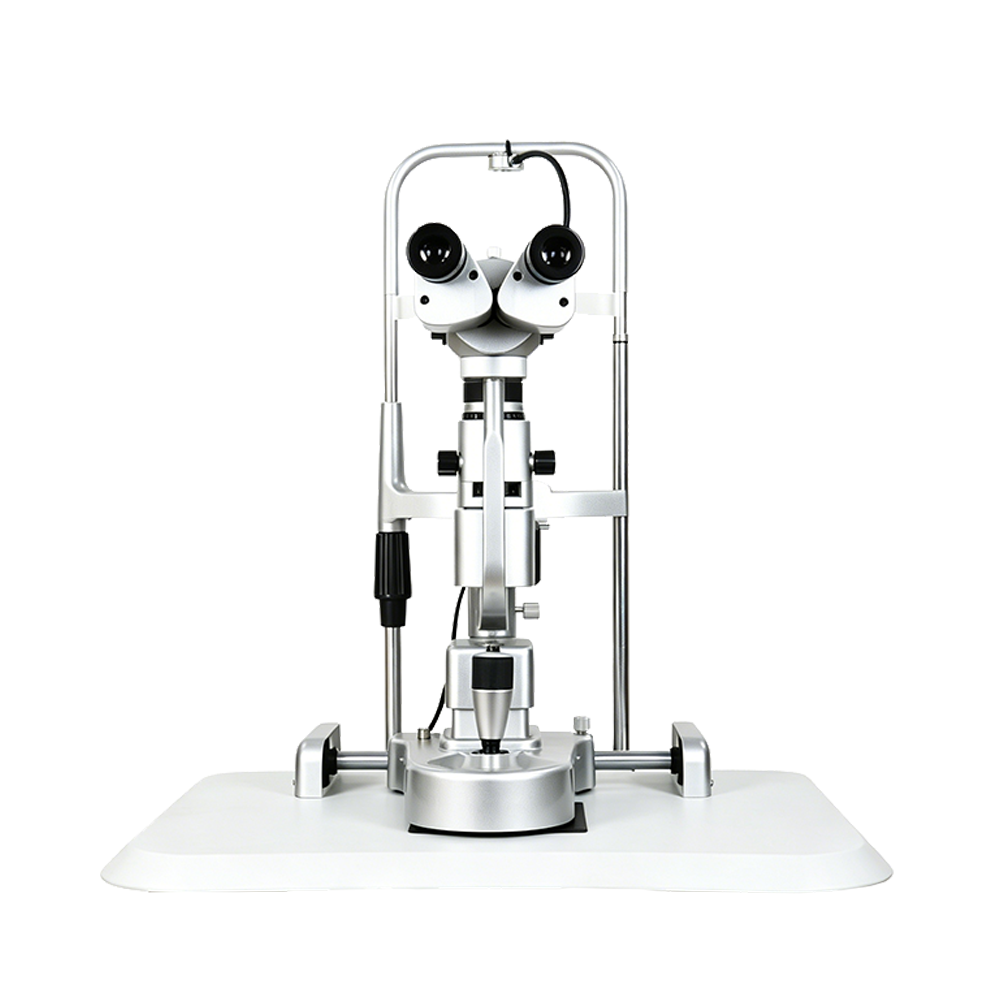

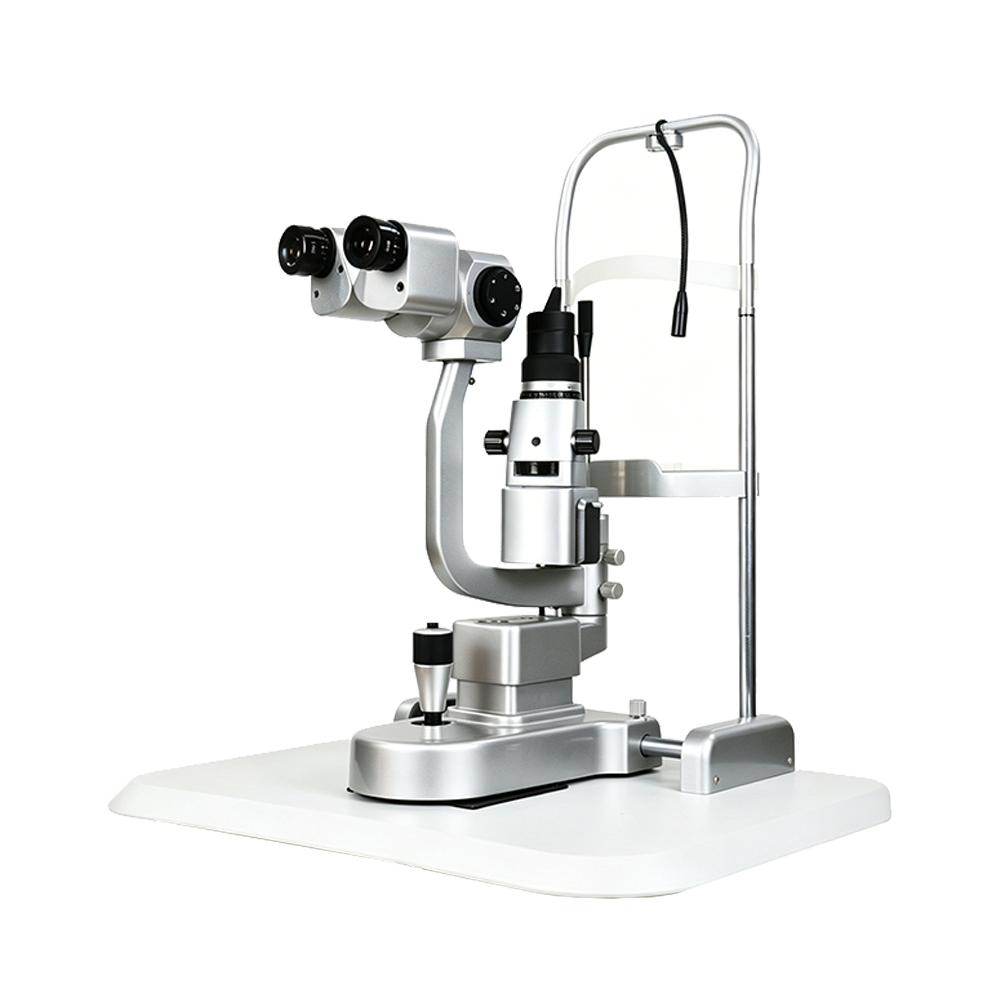

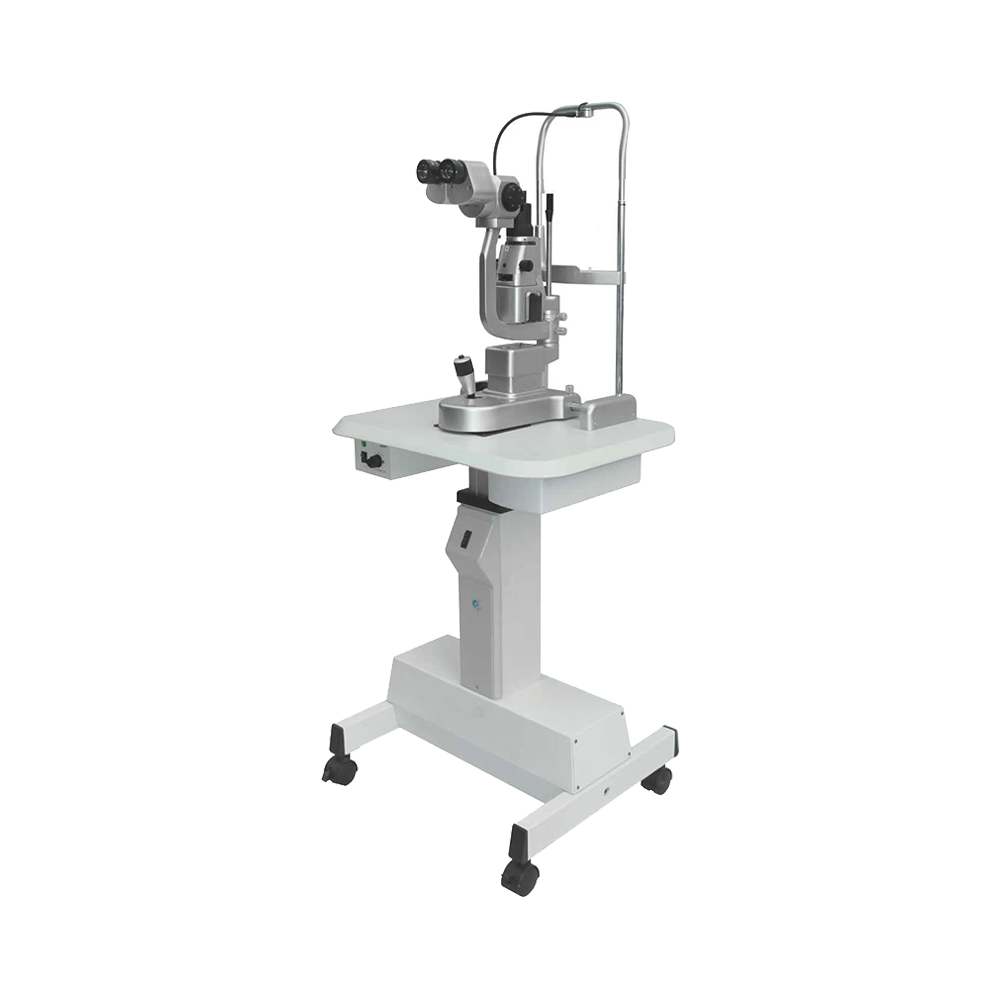

OcuRx A370 Slit Lamp Microscope
The OcuRx A370 is a straightforward clinical slit lamp microscope designed for routine eye examinations. Its Galilean parallel stereomicroscope uses quality optical materials for stable, clear viewing, with five magnification steps from 6X to 40X. The slit can be adjusted in width, length, and angle, and the unit can be digitized with an attachment to document images and videos.
Key features :
Five-step magnification: 6X, 10X, 16X, 25X, and 40X
Galilean parallel stereomicroscope with 12.5X eyepieces
Adjustable pupil distance (55–85 mm)
Slit angle from 0° to 180°
Spot apertures from Φ0.3 mm to Φ14 mm
Filters: heat absorption, grey, red-free, and cobalt blue
3.3V, 10W LED lamp plus a fixed red LED fixation lamp
Specifications
| Category | Specification | OcuRx A370 |
|---|---|---|
| Microscope | Type | Galilean parallel stereomicroscope |
| Microscope | Eyepiece | 12.5X |
| Microscope | Magnification | 6X, 10X, 16X, 25X, 40X |
| Microscope | Field of view | Φ35, Φ23, Φ14, Φ9, Φ5.5 mm |
| Microscope | Adjustable pupil distance | 55–85 mm |
| Microscope | Diopter | Greater than ±7D |
| Slit | Slit width | 0–14 mm, adjustable |
| Slit | Slit length | 1–14 mm, adjustable |
| Slit | Spot diameter | Φ0.3, Φ2, Φ3, Φ5.5, Φ9, Φ14 mm |
| Slit | Slit angle | 0–180° |
| Illumination | Filters | Heat absorption, grey, red-free, cobalt blue |
| Illumination | Lighting bulb | 3.3V, 10W LED lamp |
| Illumination | Fixation lamp | Red LED |
