OcuRx Corneal Topographer

Precision Placido-Based Corneal Mapping for Advanced Eye Care

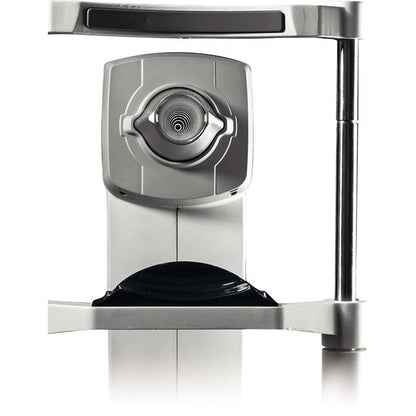

The OcuRx SW-6000 Corneal Topographer is a reliable, high-resolution diagnostic instrument designed for detailed analysis of corneal shape and refractive power. Utilizing a compact Placido cone with 31 rings and an impressive 7,936 measurement points, it delivers accurate, comprehensive data essential for modern ophthalmology and optometry practices.

Key Features & Benefits

• Advanced Placido Cone Technology — Captures thousands of data points across the corneal surface for precise mapping.

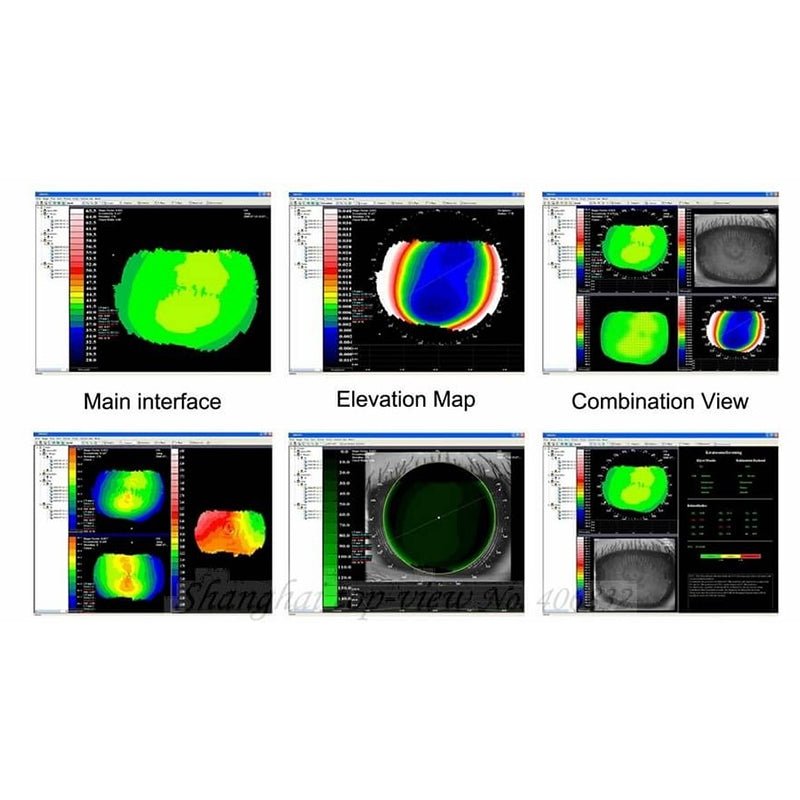

• Multiple Analysis Maps — Includes:
  • Axial Curvature Map
  • Tangential Curvature Map
  • Elevation (Altitude) Map
  • Simulated Keratoscopy (Imitated Keratoscope) Map
  • 3D Cornea Map
• Built-in Keratoconus Detection Function — Supports early screening and monitoring of keratoconus.
• High Coverage & Accuracy — Measures up to 10.91 mm diameter on the cornea with a curvature radius range of 5.5 mm – 10.0 mm (equivalent to 33.75D – 61.36D). Precision reaches ±0.02 mm.
• Versatile Clinical Applications — Ideal for:
  • Diagnosis and monitoring of corneal astigmatism
  • Pre- and post-operative evaluation of refractive surgery
  • Keratoconus screening
  • Contact lens fitting and evaluation

Technical Specifications

• Measuring Mode: Placido Cone
• Placido Rings: 31
• Measurement Points: 7,936
• Coverage Range: 10.91 mm (diameter)
• Curvature Radius Range: 5.5 mm – 10.0 mm (33.75D – 61.36D)
• Precision: ±0.02 mm

Patient Positioning & Adjustment Ranges:

• Left-Right: 0 – 86 mm
• Forward-Backward: 0 – 40 mm
• Up-Down: 0 – 30 mm
• Chinrest: 0 – 50 mm

Output & Display:

• High-quality color inkjet printer compatibility for professional reports and maps
• Clear, detailed display of all analysis maps on connected PC

The OcuRx SW-6000 combines ease of use with professional-grade performance, making it an excellent choice for clinics seeking accurate corneal topography without complexity. Its compact Placido design ensures patient comfort while providing the dense data points needed for confident clinical decisions.

Elevate your corneal diagnostics with the OcuRx SW-6000 — precise, efficient, and built for reliable daily use in refractive and corneal care.
